Coilcraft Introduces 016008F Ferrite Chip Inductors in 01005 (0402) Package for Space‑Constrained RF Designs.
World’s smallest wirewound ferrite SMD chip inductors deliver high performance in ultra‑compact, high‑frequency applications.

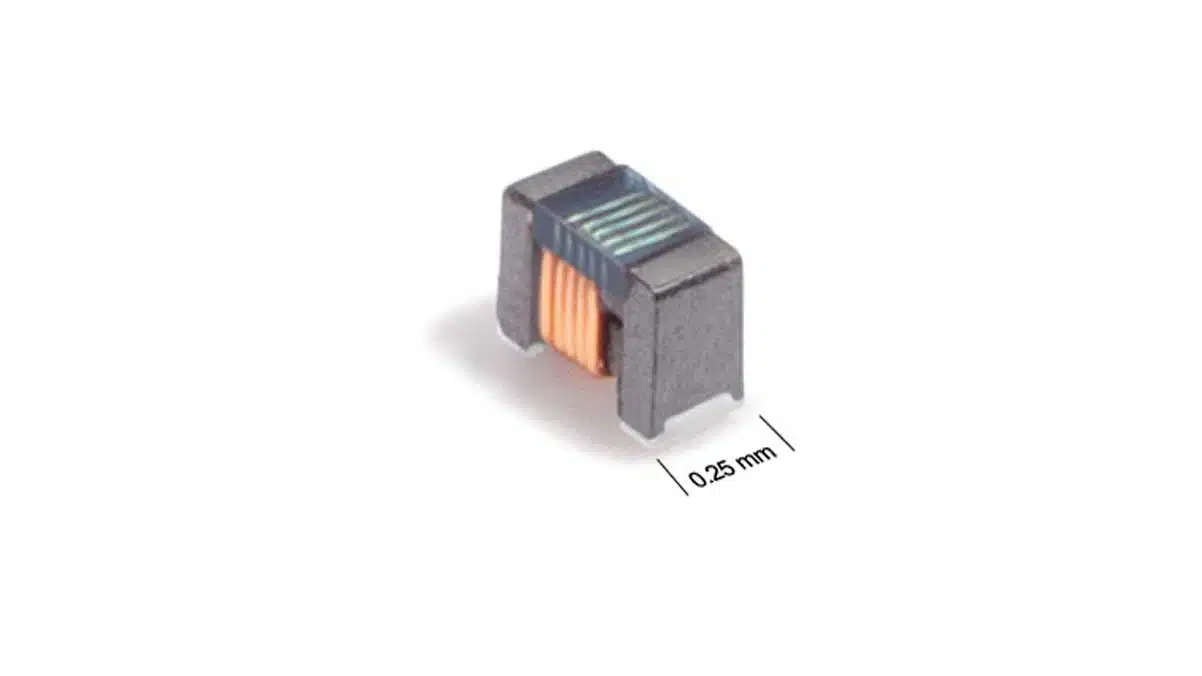

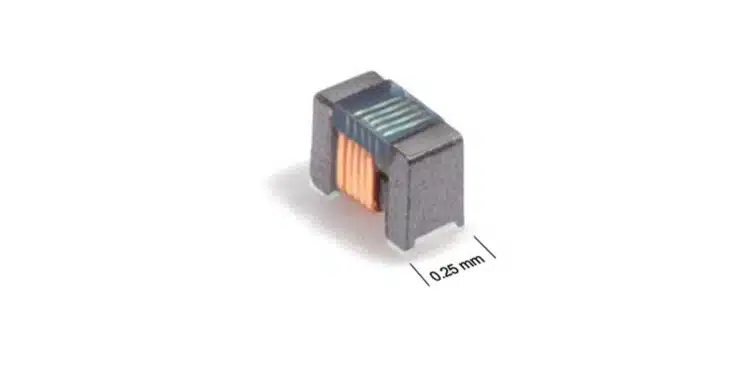

Coilcraft, a leading manufacturer of magnetics for RF, power and signal applications, announces its 016008F Series ferrite core chip inductors in the ultra‑small 01005 (0402) package, engineered for high‑frequency circuits where every square millimeter of PCB area counts.
The 016008F Series combines wirewound construction on a ferrite core with extremely compact dimensions to provide high inductance, low loss and robust current handling for today’s miniature RF front ends, wireless modules and wearable devices.
Features
- World’s smallest wirewound ferrite chip inductors, optimized for high‑frequency RF applications in severely space‑limited designs.
- 01005 (0402) footprint enabling dense layouts in smartphones, IoT nodes, modules and other portable electronics.
- Ferrite core construction for low DCR and higher current ratings compared to many ceramic alternatives.
- Inductance values in the nanohenry range, specified at RF test frequencies (for example 7.9 MHz), suitable for matching networks, filters and resonant circuits.
- RoHS‑compliant, halogen‑free design with matte tin over copper over nickel over molybdenum‑manganese terminations for excellent solderability and reliability.
- Operating ambient temperature range from −40 °C to +125 °C with maximum part temperature of +140 °C, supporting demanding industrial and communication environments.
Availability and samples
Coilcraft 016008F ferrite core chip inductors are available for immediate sampling and ordering, with same‑day shipment offered on many values. Detailed electrical specifications, including inductance, Q, self‑resonant frequency, DCR and current ratings, are provided in the product datasheet and online selection tables.
