Littelfuse has announced that its NANO2 415 Series surface‑mount fuse has received a 2025 Product of the Year award, highlighting the continued importance of robust overcurrent protection in compact electronic designs.
The recognition underlines how this fuse series addresses space‑constrained, safety‑critical applications where reliable interruption of fault currents is essential.
Key features and benefits

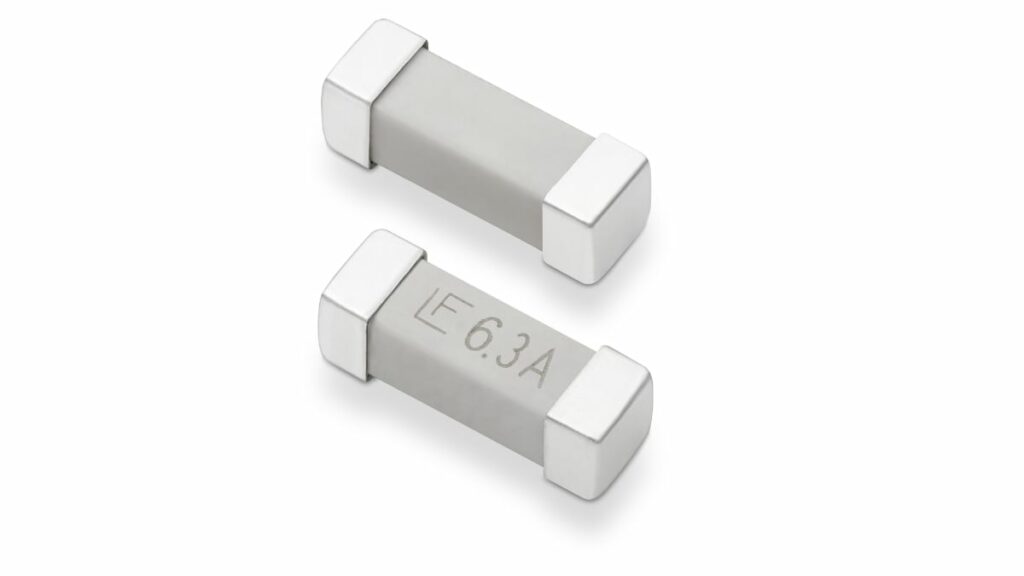

The Littelfuse NANO2 415 Series is a time‑delay, surface‑mount fuse family designed for modern high‑density boards where both footprint and height are tightly constrained. According to Littelfuse, the award recognizes its balance of compact size, fault‑clearing performance, and compliance with relevant safety standards.
Key characteristics include:
- Surface‑mount NANO2 footprint, optimized for automated assembly and high‑volume production.
- Time‑delay (slow‑blow) behavior, helping tolerate inrush and transient surge currents while still opening under sustained overloads.
- Construction and ratings suitable for use in safety‑critical circuits, with parameters defined in the manufacturer datasheet.
- Compatibility with standard reflow soldering processes common in SMT production lines.
From a design perspective, the combination of time‑delay behavior and small package makes the NANO2 415 Series attractive wherever inrush currents from capacitors, motors, or switching regulators would cause nuisance openings in fast‑acting fuses.
Typical applications
Littelfuse positions the NANO2 415 Series for a broad range of electronic equipment where printed circuit board space is at a premium and regulatory compliance is required. Typical application areas include:
- Consumer electronics such as set‑top boxes, small appliances, and home networking equipment using compact multilayer PCBs.
- Industrial control and building automation modules where DIN‑rail devices pack multiple channels into narrow enclosures.
- ICT and telecom equipment, including line cards and embedded power stages with tight thermal and spatial constraints.
- Embedded systems and IoT controllers where protection must coexist with dense mixed‑signal circuitry.
In these systems, the fuse typically sits in series with the incoming supply rail or sub‑rails, providing primary overcurrent protection and helping meet overall safety and reliability targets.
Technical highlights
While the detailed electrical ratings, breaking capacity, and derating curves are provided in the NANO2 415 Series manufacturer datasheet, several aspects are especially relevant for design engineers:
- Time‑delay characteristic: The fuse sustains short‑duration peaks such as capacitor inrush or motor start‑up, which reduces nuisance trips in power supplies and actuator drivers.
- Surface‑mount construction: The package is compatible with standard pick‑and‑place and reflow processes, improving manufacturability and reducing assembly cost versus through‑hole fuses.
- Defined interrupting ratings: The series is designed to safely clear specified fault currents; exact values and required coordination should be confirmed against the datasheet and applicable safety standards.
- Temperature and derating behavior: Operating temperature range and derating curves, as specified by Littelfuse, help engineers size the fuse for worst‑case ambient and self‑heating conditions.
For robust designs, it is important to treat the published current rating as valid under defined test conditions, then apply derating for ambient temperature, enclosure conditions, and expected overload profile.
Design‑in notes for engineers
When designing‑in the NANO2 415 Series, engineers should consider both electrical coordination and practical PCB implementation.
Key design‑in recommendations include:
- Current rating selection: Choose the nominal current based on steady‑state load, expected inrush profile, and the time‑delay curve; avoid selecting a rating too close to the normal operating current to reduce nuisance openings.
- Ambient and heating: Apply derating according to the Littelfuse curves, taking into account local PCB copper area, nearby hot components, and enclosure ventilation.
- Fault scenarios: Evaluate worst‑case short‑circuit and overload conditions so that the fuse sees fault currents within its specified interrupting rating and characteristic curves.
- PCB layout: Provide adequate pad size and copper area as specified in the recommended land pattern to ensure good solder joints and thermal performance.
- Compliance considerations: For products targeting safety standards, coordinate fuse selection with insulation, creepage/clearance, and other protective components so the overall design meets the relevant requirements.
In many real‑world circuits, the NANO2 415 fuse will operate in combination with transient protection (such as MOVs or TVS diodes) and upstream breakers or fuses; the coordination between these elements should be validated during design and test.
Source
This article is based on information published by Littelfuse in an official press release announcing the NANO2 415 Series surface‑mount fuse as a 2025 Product of the Year, complemented by general best practices for fuse selection and design‑in.
