Exxelia Power Film Capacitors Support Critical Systems Across Various Industries

13.5.2025
Reading Time: 4 mins read
A A

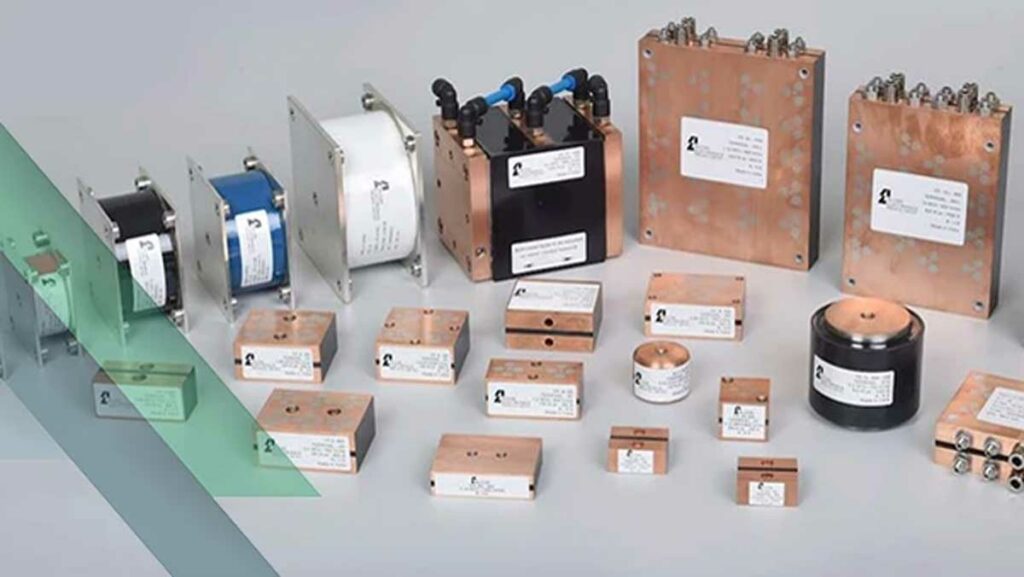

Exxelia power film capacitors are engineered for demanding applications including induction heating, plasma generators, medical equipment, magnetizers, wireless electric vehicle chargers, auxiliary power supplies, and resonant circuits.

The portfolio is tailored to meet the stringent requirements of engineers and procurement specialists in the passive electronics sector.

RelatedPosts

Exxelia Brings High-Temperature Passives to Electronica 2026

Exxelia Passive Components Support BepiColombo Mission

Exxelia Offers 1200V Capacitors and Magnetics for 800V Aerospace Platforms

Many capacitors feature a modular design, allowing for easy parallel and series connections. This facilitates scalable solutions customized to specific power needs.

Key performance specifications include reliable operation over a frequency range of 5 kHz to 1 MHz, with current ratings from 200 to 1250 Arms, voltage ratings from 400 to 1200 Vrms, and power ratings between 150 to 1000 kVAR.

  • Induction Heating, Melting, and Forging Applications:

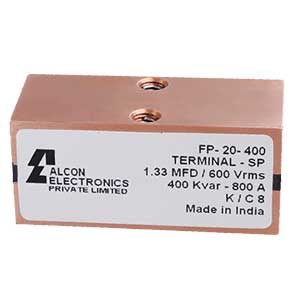

FP-20-400-SP powers capacitors for induction heating applications

Induction heating systems require components capable of managing substantial ripple currents at medium to high frequencies, with reliability under challenging thermal conditions being essential.

Specialized power film capacitors are utilized in these demanding environments, providing necessary capacitance and current handling for resonant tank circuits. Examples include water-cooled capacitors designed for high reactive power applications and variants optimized for significant current handling at higher frequencies.

  • Industrial RF & Plasma Generators:

Radio Frequency (RF) and plasma generation systems operate at high frequencies where low inductance and high Q-factor components are critical for performance and efficiency. Power film capacitors in this category are designed to minimize parasitic self-inductance (ESL) and maintain signal integrity. Water-cooled designs manage thermal dissipation effectively during continuous operation, offering high-Q solutions to reduce energy loss in resonant circuits.

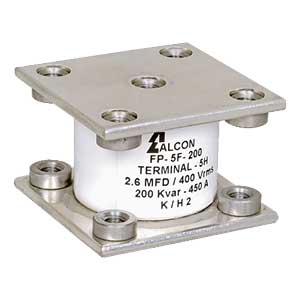

FP-5F-200 power capacitors for RF generator
  • Traction Inverters and Resonant Converters:

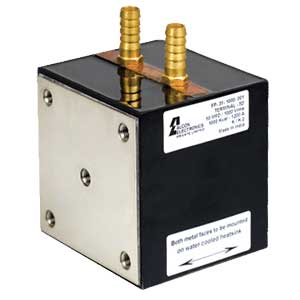

FP-31-1000 power capacitors for traction inverters

Capacitors for traction inverters and resonant converters are constructed to withstand demanding electrical and environmental conditions typical in transportation and heavy industrial applications. Cooling configurations, including water-cooled and hybrid designs, ensure thermal performance aligns with system requirements.

  • High-Frequency Welding and Brazing Equipment:

Welding and brazing equipment operating at high frequencies requires capacitors that manage significant currents efficiently. Capacitor options cater to various cooling strategies, from conduction-cooled designs suitable for systems where direct water cooling isn’t feasible to water-cooled versions for high-power systems demanding optimal thermal efficiency.

FP-20-400-SP power capacitors conduction cooled capacitor

These components are engineered to maintain performance and reliability across a range of high-frequency industrial applications.

FeatureFP-8C-1500FP-5F-200FP-31-1000FP-20-400-SP
Primary AreaInduction Heating / WeldingRF & Plasma GeneratorsTraction / Resonant ConvertersInduction / Welding / Brazing
Cooling MethodWater CooledWater CooledWater / Hybrid Cooled OptionsConduction / Water Cooled Options
Key FeatureHigh Current / PowerLow Inductance / High QHigh Power Density / Robust DesignHigh Frequency / Cooling Options
Typical Freq.Medium to High FrequencyHigh Frequency / RFMedium Frequency (Converter specific)High Frequency (up to 1 MHz)

Exxlia Power Film Catalogue Download

Related

Source: Exxelia
