TDK Announces New Automotive EMC noise Suppression Filters for MF and HF Bands

16.9.2020
Reading Time: 3 mins read
A A
0
VIEWS

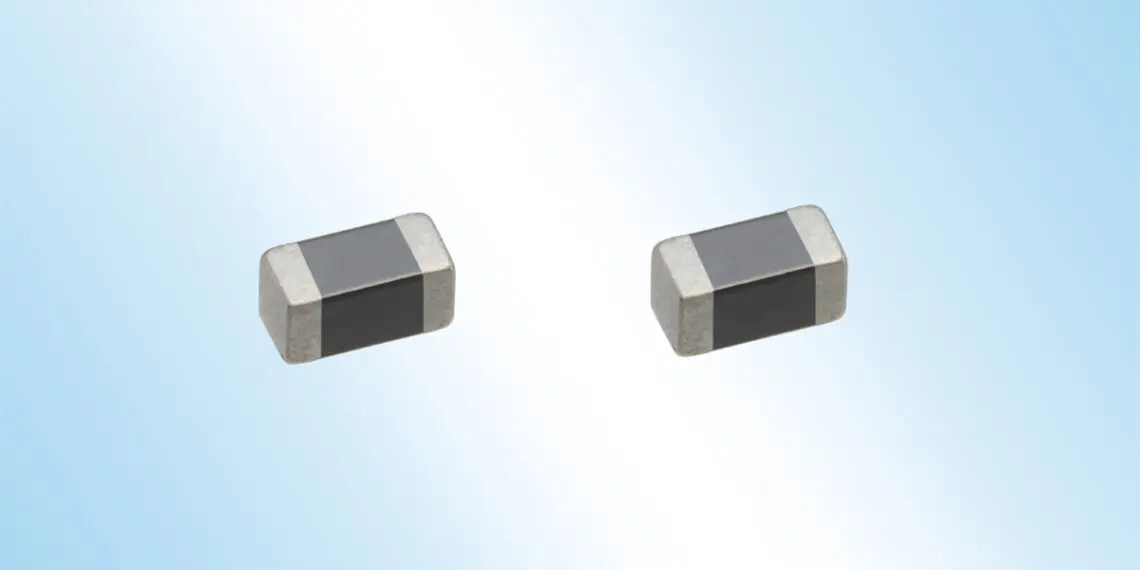

TDK Corporation announces that it has developed the MHF1608 series of HF band* noise suppression filters for automobiles, and will begin mass production in September 2020.

The noise suppression component will be inserted in signal lines for electronic control circuits in automotive applications including car audio, navigation, and battery monitoring systems. Signal transmission paths are often affected by conduction, radiation noise, or other impacts. To control these noises, a chip bead supporting a high frequency band from several dozens of MHz to several GHz is typically inserted.

RelatedPosts

NIC Components Extends SMD High Voltage MLCC Offering

Stackpole Offers RoHS Compliant Lead-Free Thick Film Chip Resistors

Smiths Interconnect’s SMD Power Resistors with Heat Sink Qualified to Space Flights

EMC components: TDK announces new automotive noise suppression filters for MF and HF bands

Key Features

  • Demonstrates impedance in high MF and HF bands
  • Employs newly developed high-loss, highly permeable ferrite
  • Operates in temperatures up to 125 ℃
  • AEC-Q200 compliant

The MHF series uses a newly developed high-loss, highly permeable ferrite material, which results in high impedance from 300 (KHz) to 30 (MHz), even lower than the frequency band above, while minimizing and controlling noise. Replacing conventional chip beads with this product enables manufacturers to reduce the number of parts used. It is wide temperature range from -55 ℃ to +125 ℃ and also qualified in accordance with AEC-Q200.

In the future, TDK will further expand the MHF series lineup to enable more compact electronic equipment and increased noise suppression across a broad range of automotive equipment.

Glossary

  • The MF frequency band is from 300 to 3000 KHz while the HF band is from 3 to 30 MHz.

Main applications

  • Car audio, car navigation, battery monitoring systems (BMS), and various types of electronic control units for automobiles

Main features and benefits

  • High impedance in the MF and HF bands, suppressing noise
  • Newly developed high-loss and highly permeable ferrite material employed, resulting in reduction of noises up to 30 MHz
  • Operating temperature range from -55 ℃ to +125 ℃

Key data

TypeImpedance
[Ω]typ.
@1MHz
Impedance
[Ω]typ.
@10MHz
Impedance
[Ω]typ.
@100MHz
DC resistance
[Ω]
max.
Rated current
[㎃]
max.
MHF1608BAC352ATD25380350016001.8170
MHF1608BAC252ATD25280250018001.6200
MHF1608BAC182ATD25220180018001.4250
MHF1608BAC601ATD258060012000.6350
Source: TDK
