ESR of Capacitors, Measurements and Applications

Capacitors ESR, or equivalent series resistance, is the real part of a capacitor’s impedance at a specified frequency and operating condition. It determines AC loss and self-heating, influences supply ripple and transient response, and can affect circuit stability.

This article explains the physical mechanisms, technology differences, measurement methods and selection checks needed by design, component and purchasing engineers.

Key Takeaways

• ESR is frequency-dependent and often temperature-dependent; a single catalogue value does not describe capacitor performance throughout an application’s operating range.
• ESR is not the same as impedance magnitude or DC leakage resistance. Near series resonance, the reactive terms cancel and impedance magnitude approaches ESR in the lumped equivalent model.
• For sinusoidal current, capacitor AC loss is the RMS current squared multiplied by ESR at that frequency. Switching waveforms require consideration of the current spectrum.
• Low ESR is useful for efficient filtering and high ripple current, but regulator compensation and capacitor-bank damping may impose additional requirements.
• Compare technologies using effective capacitance, ESR, ESL, ripple-current limits, voltage stress, temperature and lifetime, rather than a universal ranking.
• Reliable ESR measurements require controlled test conditions, suitable fixtures, compensation and an uncertainty appropriate to the resistance being measured.

Capacitor ESR: Physical Models and Equations

A real capacitor combines energy storage with conductive and dielectric losses and parasitic inductance. Its equivalent circuit helps separate these effects, but the fitted component values depend on frequency and operating conditions. The underlying capacitor principles and technology families provide the starting point for this model.

Resistance, reactance and leakage

Capacitive reactance opposes AC current without dissipating average power in an ideal capacitor. Resistance represents dissipative loss. A real capacitor also has equivalent series inductance, ESL, associated with its electrodes, connections and terminals; mounted-circuit inductance additionally includes pads, vias and the surrounding current loop. [1, 2]

• C is capacitance, expressed in farads.

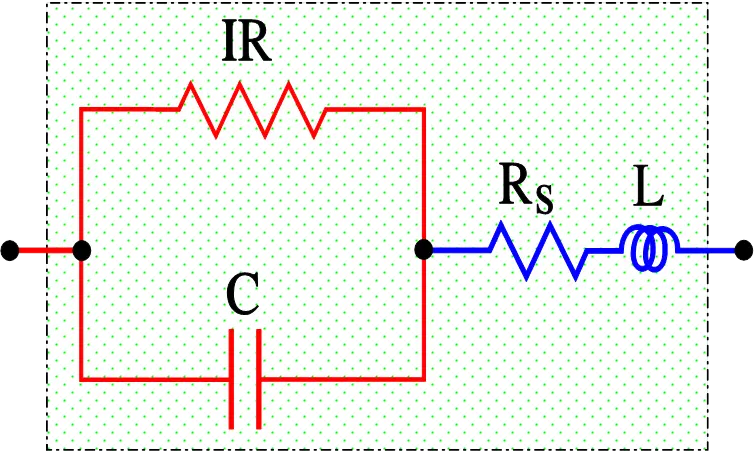

• IR in Figure 1 denotes insulation resistance, represented here in prose as R_IR. It describes leakage through or across the dielectric under specified conditions.
• R_s represents series loss in the illustrated model. A frequency-specific series-equivalent ESR includes the dissipative contributions represented by the complete model.
• L is equivalent series inductance, expressed in henries.

After the charging transient under DC voltage, leakage current remains. Leakage power is the applied DC voltage multiplied by leakage current; it is not automatically negligible, particularly at elevated temperature or after prolonged storage of electrolytic capacitors. DC insulation resistance and AC dielectric loss are related to different aspects of material behaviour and should not be treated as interchangeable specifications. [2, 3]

A parallel leakage branch can be transformed mathematically into an equivalent series contribution at a specified frequency. That transformation is frequency-specific: it does not turn a physical leakage path into a constant series resistor. Similarly, dielectric relaxation may require a distributed model rather than a single fixed resistance. [3]

Complex impedance and self-resonance

For a lumped series model at a specified operating point, complex impedance Z is given by Eq. (1). Here j is the imaginary unit, f is frequency in hertz and ω = 2πf is angular frequency in radians per second. ESR is the real part of Z; the remaining term is the net reactance. [1, 3]

The impedance magnitude, |Z|, follows from Eq. (2). This is the magnitude of a complex quantity, not an RMS value. RMS describes a voltage or current waveform, whereas |Z| relates the magnitudes of sinusoidal voltage and current at the same frequency.

The magnitudes of capacitive and inductive reactance are X_C = 1/(ωC) and X_L = ωL. Below self-resonance, the net reactance is capacitive; above it, the simple model is inductive. In the constant-parameter approximation, the series-resonant frequency f₀ is given by Eq. (3). [1, 3]

At the frequency where the imaginary part of impedance is zero, |Z| equals ESR. A low-loss component may show a pronounced resonance, whereas a more resistive component has a broader impedance minimum. When ESR, capacitance or inductance varies significantly with frequency, the minimum of |Z| need not coincide exactly with the zero-reactance frequency. [1, 3]

Measuring near resonance can make resistance extraction useful, but it does not eliminate fixture resistance or phase error. The result is ESR at that frequency, not an ESR value valid throughout the spectrum. At sufficiently high frequencies, distributed behaviour and additional resonances can also limit the single-RLC model. [1, 4]

Dissipation factor and quality factor

For the series RC representation sufficiently below self-resonance, dissipation factor DF, also written D or tan δ, is the ratio of ESR to capacitive reactance. The loss angle δ is the departure from the ideal capacitive phase relationship. Eq. (4) relates these quantities to series-equivalent capacitance C. [2, 3]

The corresponding capacitor quality factor Q is given by Eq. (5). DF and ESR describe the same dissipative behaviour in different forms; DF does not add a separate category of reactive loss. An ideal reactance stores and returns energy rather than dissipating it.

Use capacitance and DF measured at the same frequency, temperature, AC level and DC bias when applying Eq. (4). A low-frequency datasheet DF limit cannot be converted into a high-frequency ESR specification by simply substituting a different frequency. Near resonance, distinguish capacitor DF from the Q of a complete resonator or the net-reactance Q reported by an instrument.

ESR and Loss Mechanisms in Capacitors

ESR combines several dissipative mechanisms into an equivalent resistance at the measurement frequency. Their relative importance changes with dielectric, electrode geometry, electrolyte, temperature and electrical stress. Normal small-signal loss must also be distinguished from nonlinear discharge, breakdown and damage mechanisms.

Dielectric relaxation and conduction losses

Dielectric polarisation does not respond instantaneously to a changing electric field. Delayed polarisation and relaxation dissipate energy, with a frequency and temperature response determined by the material. Composition, microstructure and interfaces influence this response; losses do not universally increase monotonically with either frequency or temperature. [1, 3]

Dielectric conduction involves actual charge transport through the dielectric or along its surfaces. Leakage is especially important for DC energy retention and very-low-frequency measurements. Its contribution depends on temperature, voltage, humidity and material condition; a high DC insulation resistance alone does not establish low AC loss. [2, 3]

Ohmic resistance, skin effect and proximity effect

Terminals, internal connections, electrode foils and metallisation have finite resistance. Contact quality, conductor dimensions and current-path length affect the result. These losses produce local heating under high ripple or pulse current and can remain important even when dielectric loss is small. [2, 3]

Conductor resistance changes with temperature. At higher frequencies, skin and proximity effects redistribute current and can increase effective resistance. Their onset depends on material, conductor thickness and geometry, so there is no universal frequency threshold applicable to all capacitor technologies. Electrolyte resistance can have a very different temperature dependence from metallic resistance. [1, 2, 3]

Ferroelectric hysteresis losses

High-permittivity Class II ceramic dielectrics have nonlinear polarisation behaviour. Cyclic polarisation and domain processes can dissipate energy, while capacitance and loss depend on AC amplitude, DC bias, temperature and frequency. Hysteresis loss is associated with the area enclosed by the polarisation–electric-field cycle, not a condition in which internal and applied fields simply become equal.

This distinction matters when a small-signal LCR measurement is used to predict a high-ripple power application. A low-level ESR result does not necessarily represent large-signal heating in a nonlinear dielectric. Class I ceramics generally have much lower dielectric loss and more stable capacitance than high-permittivity Class II materials. [1]

Interfacial polarisation losses

Materials with different conductivity and permittivity can accumulate charge at their interfaces. Under a changing field, the associated redistribution and relaxation can contribute to dielectric loss. This is relevant to heterogeneous dielectric systems, but a multilayer construction by itself does not establish that interfacial polarisation dominates ESR.

Partial discharge and sparking

In high-voltage capacitors, local electric fields can initiate partial discharge in voids or other weak regions. Discharge inception depends on the dielectric system, geometry and voltage waveform. Repetitive discharge can damage insulation or metallisation and cannot be assessed from a low-voltage ESR measurement alone. Film-capacitor AC-voltage limits may therefore be set by corona discharge as well as heating and contact-current capability. [3]

Sparking or arcing is not a normal small-signal ESR mechanism to accept in general-purpose capacitors. In high-energy pulse systems, discharge events and contact damage require application-specific analysis. Metallised-film self-healing is a distinct, localised breakdown-clearing process; it should not be confused with a steady ohmic loss or used to justify operation beyond the specified electrical limits. [3]

Eddy-current and electromechanical losses

Time-varying magnetic fields can produce circulating currents in conductive structures. Their importance depends on frequency, geometry and the complete current path, particularly in high-current pulse and power assemblies. Nearby conductive fixture structures can also affect high-frequency measurements. [4]

Electrostriction and piezoelectric behaviour can convert electrical excitation into mechanical motion in suitable dielectrics. In Class II MLCCs this can couple vibration into the PCB and produce audible noise. Mechanical damping can dissipate energy, but neither acoustic output nor the number of capacitors provides a universal quantitative measure of ESR. Internal conductors may also experience electromagnetic forces under high pulse current.

Mechanism	Physical origin	Main dependencies	Design significance
Dielectric relaxation	Delayed polarisation response	Material, frequency, temperature and excitation	Dielectric heating and frequency-dependent ESR
Dielectric conduction	Charge transport through or across insulation	Voltage, temperature, humidity and condition	Leakage and very-low-frequency behaviour
Ferroelectric hysteresis	Nonlinear cyclic polarisation	Dielectric composition, AC field and DC bias	Large-signal heating in Class II ceramics
Interfacial polarisation	Charge accumulation and relaxation at interfaces	Conductivity and permittivity contrasts	Additional dielectric dispersion and loss
Ohmic resistance	Electrodes, connections, terminals and electrolyte	Material, geometry, temperature and ageing	Ripple heating and contact stress
Skin and proximity effects	Frequency-dependent current redistribution	Frequency, conductivity and geometry	Increasing conductor loss at high frequency
Partial discharge or arcing	Local electrical breakdown	Electric field, voids, waveform and construction	High-voltage reliability; not a normal small-signal ESR specification
Electromechanical coupling	Dielectric motion and conductor forces	Material, mounting and electrical excitation	Vibration, acoustic noise and possible mechanical dissipation
Eddy currents	Induced circulating currents	Frequency, magnetic coupling and conductive geometry	Power/pulse assemblies and measurement-fixture effects

ESR in Capacitor Technologies

Technology comparisons are useful only when capacitance, voltage, package and test conditions are considered together. ESR may decrease through a dielectric-loss-dominated region, approach a conductor- or electrolyte-limited level, and rise again at higher frequencies. The transition frequencies are component-specific rather than universal boundaries. [1, 2, 3]

Frequency behaviour and the historical comparison

ESR is widely specified at 100 kHz for low-ESR electrolytic products, but this is not a universal reference frequency for every capacitor. Capacitance, DF and ripple-current ratings may use different frequencies. Check the individual datasheet before comparing values or converting DF to ESR. [2, 5]

Behavioural region	Possible dominant contribution	What to examine
Lower-frequency capacitive region	Dielectric loss; leakage at sufficiently low frequency	DF, effective capacitance and operating voltage
Intermediate region	Electrolyte resistance, electrodes and internal connections	Part-specific ESR and temperature curves
Near series resonance	Reactive cancellation exposes resistive impedance	ESR, fixture residuals and the zero-reactance frequency
Higher-frequency region	ESL controls much of |Z|; conductor losses may increase	Complex impedance, mounting inductance and model validity

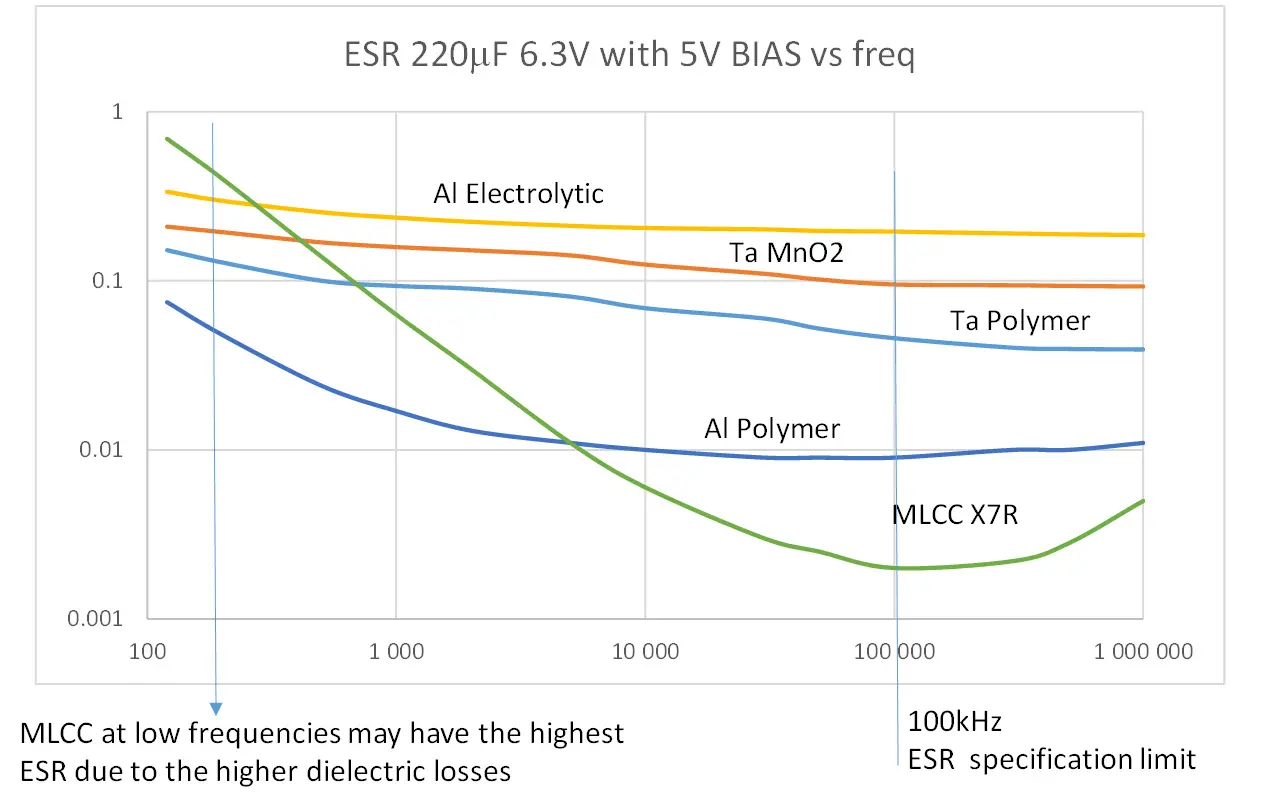

Figure 4 illustrates why a technology can have low ESR in one frequency region without being the lowest-loss option everywhere. Do not use it as a substitute for current part-number data, or infer total filtering impedance from ESR alone. At lower frequencies, available capacitance and capacitive reactance may dominate the filtering result; at higher frequencies, ESL and mounting geometry become increasingly important. [1, 2]

MLCC and ceramic capacitors

Multilayer ceramic construction provides many parallel electrode paths and can achieve low ESR and low ESL. Class I dielectrics such as C0G, also commonly described as NP0, suit low-loss resonant, timing and RF applications. Electrode material and geometry remain important, so dielectric class alone does not establish the ESR of a finished component. [1]

Class II dielectrics, including X7R and Y5V, provide higher capacitance density but greater dependence on temperature, applied voltage and excitation level. Compare effective capacitance under DC bias as well as ESR. A nominal capacitance value measured at a catalogue test condition may overstate the capacitance available in a biased power rail.

For high-ripple resonant operation, use suitable loss or self-heating data and validate temperature rise at the actual AC amplitude. For RF and microwave work, use frequency-specific Q, ESR and model or S-parameter data. Class II electromechanical coupling and PCB stress also deserve attention, especially with large components or acoustically sensitive assemblies.

Tantalum capacitors

For solid tantalum capacitors, the cathode system and internal current paths strongly influence ESR. Conductive-polymer types generally offer lower high-frequency ESR than comparable manganese-dioxide, MnO₂, designs. Multianode construction can reduce current-path resistance further, but comparisons must remain specific to the selected capacitance, voltage and package. [5]

Low ESR does not remove voltage-derating, ripple-current, surge-current or environmental requirements. Polymer parts can show parameter changes under sustained high temperature and humidity, and permissible ripple current can fall substantially as temperature increases. Do not extrapolate a room-temperature ESR value beyond the series’ specified operating range. [5]

Dielectric absorption and leakage matter in low-frequency and charge-retention applications, but partial discharge is not a general low-frequency characteristic of tantalum capacitors. Parallel connection can reduce bank impedance and distribute loss, provided layout, component spread and current sharing are considered.

Aluminum electrolytic capacitors

Wet aluminum electrolytics provide substantial bulk capacitance, with ESR influenced by dielectric loss, electrolyte conductivity, electrode foils, tabs and terminals. Electrolyte resistance rises as temperature falls, so cold-start impedance can be more restrictive than room-temperature data suggests. Ripple-current heating and cooling conditions are central to useful-life assessment. [2]

Solid-polymer and hybrid constructions can reduce ESR relative to comparable wet-electrolyte designs. Hybrid capacitors combine conductive polymer with liquid electrolyte; they are not automatically the lowest-ESR or longest-life option in every comparison. Evaluate the complete series specification, including voltage, leakage, temperature, endurance and mounting restrictions.

Manufacturers reduce resistance through electrolyte selection, electrode and separator design, and improved internal connections. These are coupled design choices: a thinner separator or a different electrolyte cannot be assessed solely by its effect on ESR. Electrical integrity, manufacture and long-term reliability must remain within the qualified design.

Film capacitors

Film capacitors deserve explicit consideration in power and resonant applications. Polypropylene generally has lower dielectric loss than polyester, but complete-component ESR also includes metallisation, electrode and contact losses. Film/foil and metallised-film constructions offer different compromises in pulse capability, size and self-healing behaviour. [3]

For DC-link, snubber and resonant service, examine the permissible AC voltage versus frequency, RMS current, pulse slope, peak current and temperature rise. Low ESR alone does not establish adequate pulse capability, and a high DC voltage rating does not imply unrestricted high-frequency AC operation. Film capacitors are not a generic substitute for dedicated microwave capacitors. [3]

Technology	Typical ESR-related strength	Important limitation	Typical application class
Class I ceramic	Low dielectric loss and high Q	Capacitance availability, package parasitics and RF current limits	RF, timing and resonant circuits
Class II MLCC	Low high-frequency impedance in compact packages	Effective capacitance, nonlinear loss and electromechanical coupling	Power-rail bypassing and decoupling
Polymer tantalum	Low ESR with substantial compact bulk capacitance	Voltage derating, leakage, surge and environmental limits	DC-DC output filtering and bulk decoupling
MnO2 tantalum	Established construction with application-specific reliability options	Higher ESR in many comparable designs; surge and derating requirements	Qualified bulk and decoupling applications
Wet aluminum electrolytic	Large bulk capacitance and broad voltage options	Cold-temperature ESR and useful-life dependence on heat	Bulk smoothing and energy storage
Polymer or hybrid aluminum	Reduced ESR in suitable low-loss series	Series-specific voltage, temperature and endurance limits	High-ripple power filtering
Polypropylene film	Low dielectric loss and suitable high-current constructions	Size, contact-current, AC-voltage and pulse limits	DC link, pulse and power-resonant circuits

Application Impact and Selection Guidance

The lowest available ESR is not always the best design choice. Power filtering requires acceptable ripple, loss and temperature rise; feedback-controlled circuits also require stability; RF and precision signal applications require the appropriate Q and impedance at the operating frequency. Selection therefore starts with the capacitor’s circuit function.

Ripple-current heating and lifetime

For sinusoidal capacitor current, average AC loss P_AC is given by Eq. (6), where I_RMS is RMS current and ESR(f,T) is ESR at frequency f and temperature T. This relationship explains why lower ESR can increase ripple-current capability, but contact-current and thermal limits still apply. [2, 3]

For a periodic nonsinusoidal waveform in a linear frequency-dependent model, separate the AC current into harmonics. Eq. (7) sums their losses, with I_n,RMS the RMS current of harmonic n and f_n its frequency. Use the ESR appropriate to each harmonic; a single ESR value applied to total RMS current can misrepresent heating when ESR varies strongly across the spectrum. [3]

For nonlinear dielectrics, small-signal ESR and a linear harmonic model may not fully predict large-signal loss. Validate heating with the actual waveform. DC leakage power is an additional contribution and should be included separately when significant.

A first-order steady-state estimate of temperature rise is Eq. (8). Here ΔT is the rise between the selected thermal reference points, R_th is the corresponding thermal resistance in kelvins per watt, and P_loss is total dissipated power. The thermal resistance must match the mounting and cooling arrangement; a case-temperature measurement does not directly establish the internal hot-spot temperature. [2]

In wet electrolytics, excessive temperature accelerates deterioration and electrolyte loss. Increased ESR can then worsen ripple heating. Use the manufacturer’s useful-life method and frequency and temperature correction factors rather than a universal lifetime rule. Low ESR does not remove voltage, ripple, connection or cooling limits. [2]

Switching supplies and parallel capacitor banks

Combining MLCCs with electrolytic or polymer bulk capacitors can cover complementary impedance requirements: local ceramic capacitors support fast current changes, while larger bulk capacitance supports lower-frequency energy demand. The result depends on the impedance of each branch and the interconnecting layout, not an arithmetic average of their ESR values.

Parallel branches with different capacitance and inductance can produce anti-resonant impedance peaks. Reducing resistance can reduce damping and make such peaks more pronounced. Analyse the mounted capacitor network, including trace and via inductance, then verify rail impedance or transient behaviour. Adding capacitors is not guaranteed to flatten impedance or improve regulator stability. [6]

For identical components with identical connections, parallel operation reduces effective resistance and shares current. Real banks depart from this ideal because capacitance, ESR, inductance and temperature differ. Check branch current and local heating rather than assuming equal sharing, especially in high-current power assemblies.

LDO and amplifier stability

Some LDOs rely on output-capacitor ESR to create a compensating zero. Others are designed for ceramic output capacitors with very low ESR. Neither minimum ESR nor maximum ESR can be inferred from whether a regulator is described as modern or legacy; the applicable limits come from its datasheet and operating conditions. [6]

The ESR-zero frequency f_z,ESR is given by Eq. (9), where C_out is output capacitance. Lower ESR moves this zero to a higher frequency. Whether that helps or harms stability depends on the regulator’s compensation, load and complete output network. [6]

Amplifiers driving capacitive loads also require circuit-specific stability analysis. Do not apply a generic capacitor ESR range to op-amp feedback networks. A deliberately added isolation or damping resistor has a defined circuit role and should not be confused with an assumed internal capacitor ESR.

RF, resonant and fast-switching power circuits

For RF matching and high-Q signal resonators, prioritise frequency-specific Q, ESR, self-resonance and a suitable package model. Class I ceramic and dedicated RF capacitors are common starting points. For power-resonant and pulse circuits, suitable Class I ceramic or film constructions must also satisfy RMS current, peak voltage, pulse and thermal requirements. [1, 3]

In fast-switching power stages, capacitor selection must address the high-frequency current loop and mounting inductance as well as ESR. Lower ESR reduces dissipation but may also reduce damping. These switching-loop effects are distinct from the output-capacitor compensation requirements of an LDO.

Application	Primary ESR-related objective	Additional checks	Selection approach
LDO output	Remain within the regulator’s permitted ESR range	Effective capacitance, load range and parallel bypass capacitors	Follow the IC datasheet and validate transients
SMPS output	Meet ripple and thermal requirements without compromising stability	Control-loop compensation, impedance peaks and layout	Evaluate the complete mounted capacitor bank
Amplifier capacitive load	Avoid unacceptable phase-margin reduction	Amplifier topology and isolation network	Use circuit-specific stability guidance
DC-link or pulse power	Limit loss and contact heating	Voltage, RMS and peak current, pulse slope and cooling	Use application-rated power capacitors
RF matching or resonance	Achieve required Q and insertion loss	Self-resonance, package and PCB parasitics	Use frequency-specific component data
Automotive or industrial power	Maintain acceptable impedance across the mission profile	Cold start, hot operation, humidity, vibration and qualification	Assess the specific qualified series and operating limits

Design and purchasing checklist

• Define the function: bulk energy storage, decoupling, resonant operation, signal coupling, snubbing or safety-related interference suppression.
• Compare effective capacitance and tolerance at operating temperature and bias, not nominal capacitance alone.
• Record whether ESR is a typical curve or a guaranteed maximum, and note frequency, temperature, AC level, DC bias and any preconditioning.
• Check ripple-current ratings and correction factors, permissible AC voltage, surge current, peak current and pulse slope where applicable.
• Evaluate ESL and mounting-loop inductance; confirm that the model covers the frequencies important to the circuit.
• Apply the regulator’s capacitance and ESR requirements and assess capacitor-bank damping and current sharing.
• Check useful life, endurance conditions, allowable parameter drift and the manufacturer’s thermal calculation method.
• For catalogue alternatives, verify electrical limits, package dimensions, terminal configuration, mounting process and qualification. Matching capacitance and voltage does not establish interchangeability.
• For custom power capacitors or banks, agree ESR measurement frequency and temperature, terminal reference planes, cooling conditions, current distribution, acceptance limits and change-control requirements.
• Confirm the required qualification and approvals for the actual application. Low ESR or an automotive qualification does not by itself establish suitability for mains-connected safety service.

Qualification and safety requirements must be assessed independently of loss performance. In particular, ordinary film capacitors should not be substituted for appropriately approved EMI-suppression capacitors solely because their capacitance, voltage and ESR appear suitable. [2, 3]

Advanced Design and Measurement Insights

An ESR result is meaningful only with its measurement conditions and uncertainty. Separate catalogue acceptance testing from application characterisation: the former reproduces the manufacturer’s stated test, while the latter explores the temperatures, frequencies and excitation levels relevant to the circuit.

Select the instrument and equivalent model

Use an LCR meter or impedance analyser capable of resolving the expected resistance at the required frequency. Series mode, commonly displayed as C_s–R_s, is normally the useful representation for low-impedance capacitors and direct ESR reporting. Parallel mode, C_p–R_p, is often convenient for high-impedance capacitors, but R_p is not ESR.

Select the model using impedance at the test frequency, expected losses and the instrument’s accuracy guidance, rather than capacitance alone. Series and parallel equivalent values can be transformed mathematically at a given frequency, but mixing their resistance or capacitance values without conversion produces incorrect results.

For RF characterisation, a suitable impedance analyser or calibrated network-analyser method may be required. A general-purpose instrument’s displayed resistance can be misleading when the desired real part is small relative to reactance or fixture residuals. Check the applicable accuracy specification rather than relying only on display resolution. [4]

Compensate the fixture before inserting the capacitor

Use short, repeatable connections and a suitable Kelvin or four-terminal-pair fixture for low resistance. Follow the instrument’s prescribed calibration and open/short compensation procedure at the intended measurement plane. RF fixtures may also require electrical-length compensation or de-embedding. Perform these operations before installing the device under test. [4]

Fixture contact condition, component position and the definition of the short standard can materially affect results. Keep contact surfaces clean, reproduce mounting geometry and avoid unaccounted changes to leads or adapters after compensation. Compensation removes modelled residuals; it does not guarantee zero uncertainty. [4]

Control frequency, temperature, AC level and DC bias

Start with the datasheet’s specified test conditions. Record test frequency, AC voltage or current, DC bias, component temperature and preconditioning. If DC bias is used, use a rated bias fixture or approved instrument connection and observe both instrument and capacitor voltage limits.

For polarised capacitors, follow the specified test method and prevent prohibited reverse voltage. When checking the instantaneous voltage under a DC bias plus sinusoidal AC excitation, use AC peak amplitude rather than comparing the DC bias directly with an RMS AC setting. Also ensure that the maximum combined voltage remains within the permitted limit. [2]

For Class II MLCCs, AC test level and DC bias can change the measured capacitance and loss. For electrolytics, allow temperature to stabilise and apply the manufacturer’s stated preconditioning when required. A single room-temperature measurement does not validate cold-start impedance or hot-operation ripple performance. [2, 5]

Technology	Lower-frequency assessment	Higher-frequency assessment	Additional condition to record
Class I ceramic	Capacitance and DF	ESR, Q and self-resonance	Fixture geometry and test frequency
Class II MLCC	Capacitance and loss at the specified AC level	ESR and impedance under relevant bias	DC bias, AC amplitude and temperature
Solid tantalum	Capacitance and DF under the specified method	ESR and ripple-current suitability	Polarity, bias and conditioning
Aluminum electrolytic	Capacitance, DF and low-frequency ripple	ESR and switching-ripple contribution	Temperature, history and preconditioning
Film	Capacitance, DF and AC-voltage suitability	ESR, resonance and contact-current limits	Terminal length, waveform and temperature

Application validation and field reliability

Characterise ESR over the relevant frequency and temperature range, then validate the assembled circuit’s ripple, transient response and component temperature. Manufacturer models are useful for initial analysis, but check whether they include bias, temperature, large-signal loss and mounting effects. Small-signal bench ESR is not a replacement for high-current thermal validation.

In-circuit measurements can be influenced by parallel capacitors, semiconductors and other current paths. An unexpectedly low reading does not prove that the individual capacitor is healthy. Isolate the component where necessary and never connect an ordinary LCR meter to an energised circuit or a charged capacitor.

Diagnostic interpretation and industry practice

A rising ESR trend can support maintenance decisions for electrolytic capacitors, particularly when accompanied by capacitance change or increased ripple and temperature. Compare results at matched frequency and temperature. Useful-life limits and allowable parameter drift are defined by the relevant series and application, not a universal ESR threshold. [2]

High DF at lower frequency may indicate increased dielectric or leakage-related loss, while high resistance at higher frequency may involve electrolyte, electrode or connection changes. Neither observation uniquely identifies impurities, delamination or a defective weld. Confirm the measurement setup and use additional electrical or physical investigation before assigning a failure mechanism.

Polymer and hybrid capacitors can improve ESR performance in suitable applications, but long-term stability remains conditional on voltage, temperature, humidity and electrical loading. Qualification results, endurance limits and the operating mission profile provide a stronger basis for reliability decisions than technology labels alone. [2, 5]

Conclusion

ESR connects capacitor loss to ripple heating, impedance and circuit behaviour, but it is not an independent or constant selection parameter. Use frequency-specific data together with effective capacitance, ESL, voltage stress, temperature and lifetime requirements. For feedback-controlled circuits and parallel banks, verify stability and damping as well as loss.

Good practice combines datasheet-based screening, compensated measurements and application-level validation. The objective is not simply the lowest ESR: it is a capacitor or capacitor bank that meets electrical, thermal, reliability and safety requirements throughout the intended operating range.

FAQ

How to Measure Capacitor ESR

Further Reading

These articles provide additional construction and application context for the technology comparisons discussed here.

• MLCC and Ceramic Capacitors — dielectric classes, construction, bias dependence and mechanical considerations.
• Tantalum and Niobium Capacitors — cathode systems, internal construction, derating and application constraints.
• Aluminum Electrolytic Capacitors — wet, polymer and hybrid construction and their operating characteristics.
• Understanding the Influence of ESR and Ripple Current for the Capacitor Selection — application-oriented comparison of ripple capability and capacitor technologies.

References

The numbered references support the equivalent-circuit relationships, technology discussion, measurement guidance and regulator-stability considerations.

1. Murata Manufacturing, What are impedance/ESR frequency characteristics in capacitors?, Murata Capacitor Guide, 2013.
2. TDK Electronics, Aluminum Electrolytic Capacitors: General Technical Information, TDK Electronics, August 2026.
3. TDK Electronics, Film Capacitors: General Technical Information, TDK Electronics, October 2025.
4. Keysight Technologies, 16196A/B/C/D: Correlating RF Impedance Measurements When Using SMD Test Fixtures, application note 5980-1336E, Keysight Technologies, 2014.
5. KYOCERA AVX, TCM Series: Conductive Polymer Solid Electrolytic Chip Multianode Capacitors, datasheet TDS-PTNO-0028, revision 16, KYOCERA AVX, undated.
6. Texas Instruments, AN-1482: LDO Regulator Stability Using Ceramic Output Capacitors, application report SNVA167A, Texas Instruments, revised 2013.

Latest technical review and revision: 27 October 2026. Equivalent-circuit equations, loss mechanisms, technology comparisons, measurement guidance and selection checks reviewed and updated.
