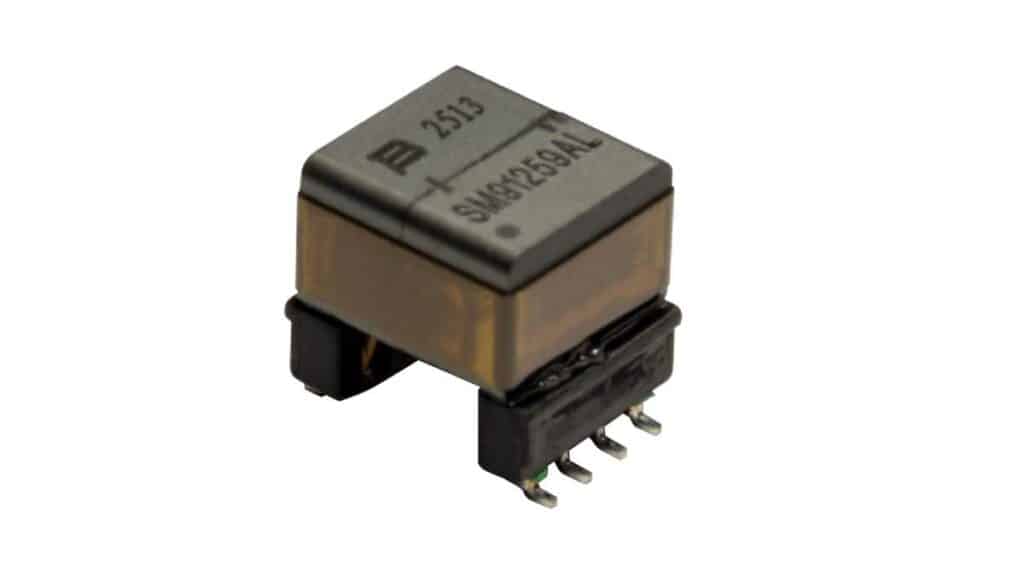

Bourns Introduces SM91259AL: A High-Performance Transformer for Clean Energy and Automotive Applications.
Bourns, a leading innovator in electronic components, is pleased to announce the launch of the SM91259AL, a cutting-edge transformer designed to meet the demanding requirements of clean energy and automotive industries.
This new product offers exceptional performance and reliability, making it an ideal choice for a wide range of applications.
The SM91259AL features a working voltage of up to 1000 Vrms and a high Hi-Pot rating of 4000 VAC, 5 mA, 10 s, ensuring robust performance in challenging environments. Its reinforced insulation per IEC 61558-1 and compliance with UL 62368-1 standards provide peace of mind for engineers and manufacturers.
The SM91259AL is particularly well-suited for applications in AC-DC and DC-DC converters, micro inverters, string inverters, solar energy systems, chargers, and On-Board Chargers. Its automotive-grade design ensures it meets the stringent requirements of the automotive industry.
Features
- Working voltage up to 1000 Vrms
- Hi-Pot: 4000 VAC, 5 mA, 10 s
- Reinforced insulation per IEC 61558-1,
- UL 62368-1
- Clearance distance >10 mm, up to 2 km altitude
- Creepage distance >10 mm
- Overvoltage category II, pollution degree 2
- AEC-Q200 compliant
- RoHS compliant
- Automotive Grade
Applications
- AC-DC and DC-DC converters
- Clean energy: micro inverters, string inverters, solar
- Personal mobility: chargers, On-Board Chargers
