How to Get Equally Split Time Base Sampling in LTspice?

29.2.2024
Reading Time: 1 min read
A A

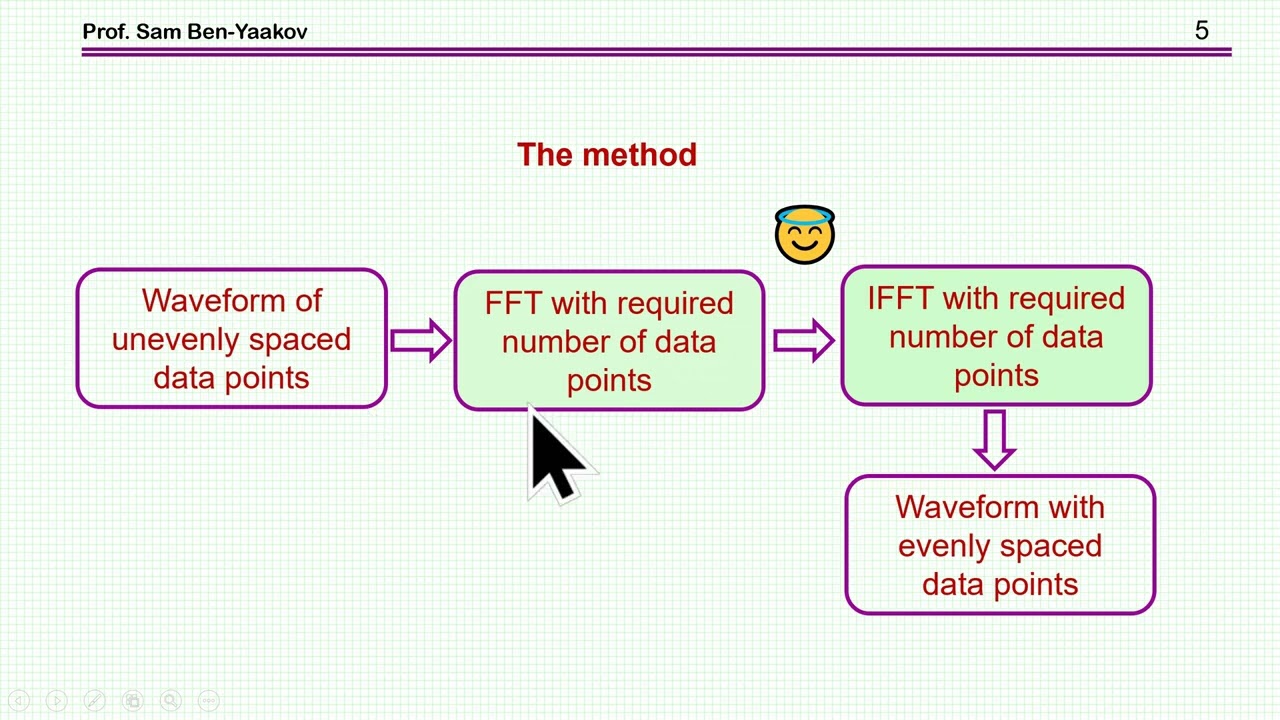

This video by Sam Ben-Yaakov explains a simple trick how to make LTspice time base split equally.

LTspice simulation core function is not using equal time base sampling. The sampling time interval is set depending to the actual plot behaviour trying to be shorter / more accurate in transient time and idle in the area of stable operation to save time and computing power. However, in some cases you may need to model the circuit behaviour with equal time domain sampling. This video explains how to achieve it with relatively simple trick using FFT function.

RelatedPosts

Understanding Switched Capacitor Converters

Capacitance Definition of Non-Linear Voltage Dependent Capacitors

Coupled Inductors Circuit Model and Examples of its Applications

Related

Source: Sam Ben-Yaakov
