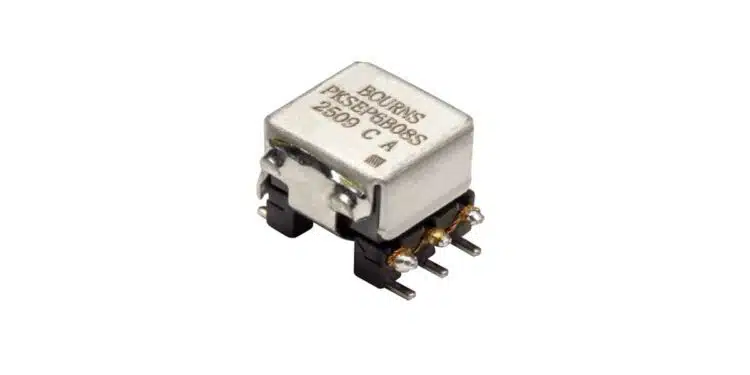

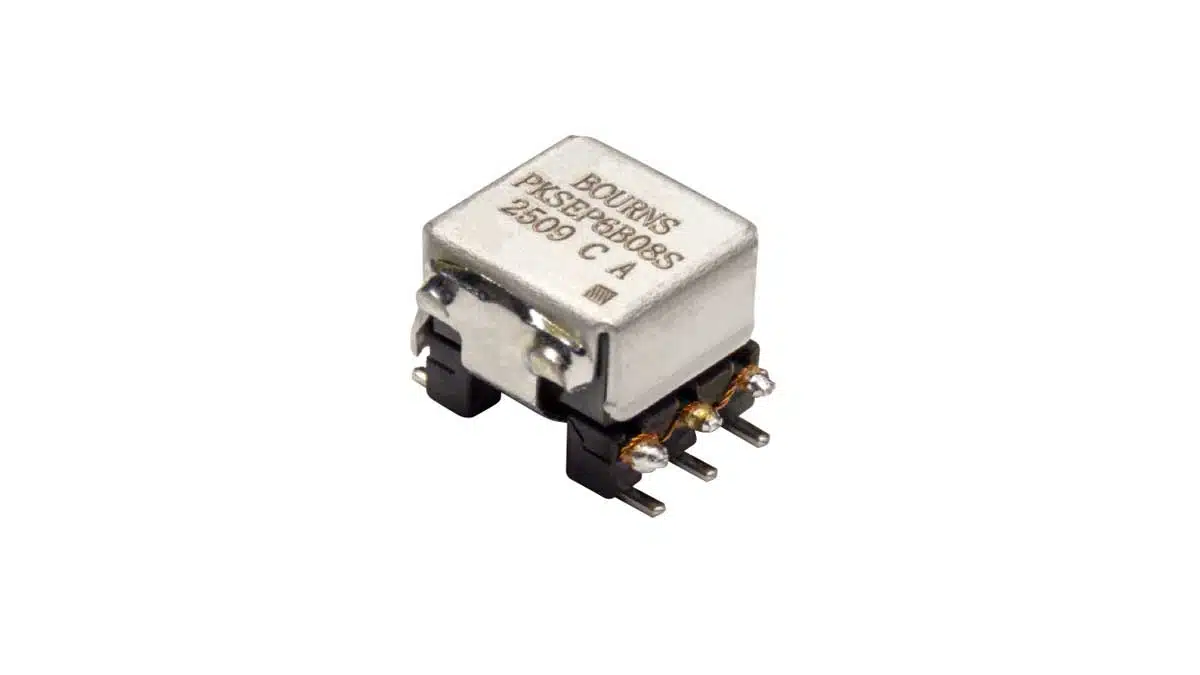

Bourns Custom Magnetics Product Line is introducing the Model PKSEP6B08S impedance matching transformer, a new automotive-grade product that complies with AEC-Q200 standards.
This transformer is designed to drive ultrasonic transducers and offers a range of features that make it ideal for various applications.
The Model PKSEP6B08S Impedance Matching Transformer has a 3.18 mH inductance and a 7.9:1 turns ratio, which can be extended or customized to meet specific requirements. It operates in frequency ranges between 50 kHz and 300 kHz and above, and has temperature ratings from -40 °C to +90 °C.
This transformer platform enables ideal impedance matching between ultrasonic transducers and driver integrated circuits, making it suitable for a wide range of applications.
Some of the target applications include automotive parking assistance, industrial robots, drones, logistics robots, automated guided vehicles (AGVs), and fill level measurement systems.
Features
- Ferrite Core
- EP 6 SMD type
- Shielding for optimized EMC-behavior
- 5 U-shape terminals
- Operating temperature: -40 °C to +90 °C
- RoHS compliant
- AEC-Q200 compliant
Applications
- Ultrasonic sensor
- Ultrasonic park assist
- Industrial distance measuring
- Robotics
