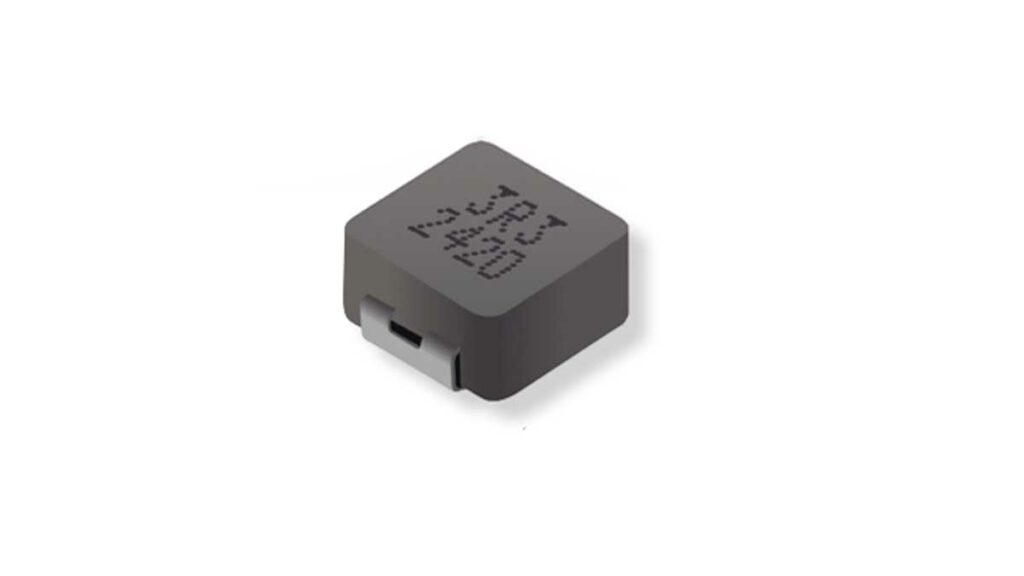

Bourns Magnetics Product Line is introducing the new SRP5030HMCT series shielded power inductors.
These shielded power inductors are manufactured using a hot press molding process with metal alloy or carbonyl powders.
They feature high heating / saturation current and low magnetic field radiation. Additionally, this new series offers a compact footprint and low profile of 2.8 mm.
These new inductors are well-suited for DC-DC converters and power supplies in consumer, industrial and telecom applications.
Features
- Shielded construction – low radiation
- Size: 5.3 x 5.7 x 2.8mm
- Inductance: 0.24 – 22uH
- Heating Current Irms: 3.1 – 25A
- Saturation Current Isat: 3.5 – 38A
- Operating Temperature: -40 to +125C
- Low buzz noise
- Hot press molding process
- High current
- Low DCR
- RoHS compliant and halogen free
Applications
- DC-DC converters
- Power supplies in consumer, industrial and telecom electronics
Source:
Bourns
